Length(mm) | 11100 |
Width(mm) | 2500 |
Height(mm) | 4200 |
G.V.W.(kg) | 17800/18000 |
Approach Angle/Departure Angle(°) | 7°/8° |
Wheelbase(mm) | 5450 |
Max.Grade Ability(%) | ≥20 |
Seats | 73+1 for Half-top/51 in upper-deck+22 in lower deck +1 |
Fuel Consumption(l/100km) | Limited Condition 24 |
Engine Model | Cummins ISME 335 10.8L/ISME 335 30 |
Engine Output (kw/rpm) | 250 /1900 |
Engine Max. Torque (N.m/rpm) | 1410 / 1200 |
Chassis Suspension System | Air Suspension, Height Control of Air Spring/Six-airbag air suspension |
Chassis Gearbox | ZF A/T/ZF 6AP 1700B |
Chassis Braking System | Dual-circuit Air brake with ABS |
Chassis Steering System | ZF 8098 |
Front Axle | ZF/Disc brake |
Rear Axle | ZF/Disc brake |
Tyre | 295/80R22.5 |
Model | City Bus |
Energy | Diesel |
Feel Street Rhythm and Sunshine Life

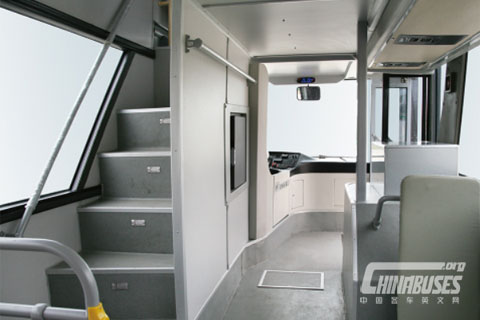

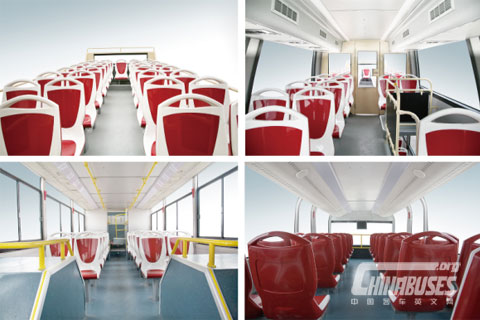

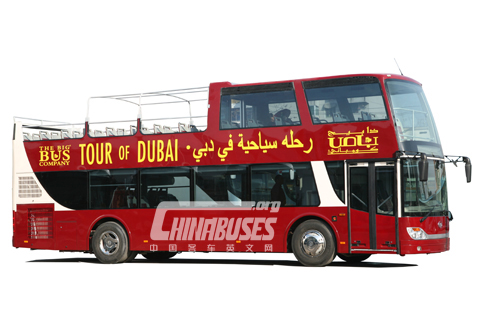

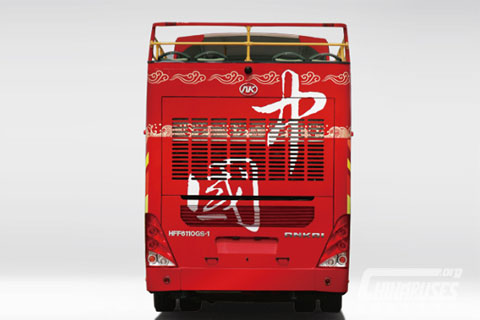

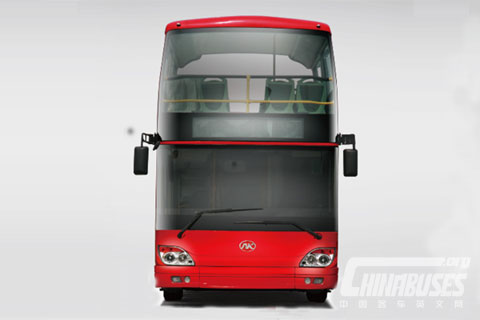

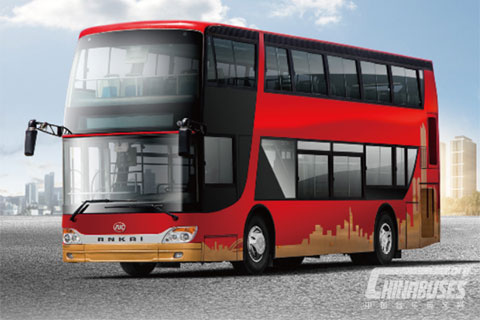

Ankai HFF6110GS-1 double-deck sightseeing city bus is of Monocoque construction, imported powertrain and suspension system. It makes you feel cozy and fun about what you see and feel from power, control, safety, appearance, interior and environment-protection, representing the design concept of humanization, being equipped with air-conditioner, refrigerator, multi-language audio system, doorbell, first-aid case, electronic rear-view mirror, fire extinguisher, manual pedal for wheelchair and surveillance cameras.
