Overall specification |
Overall dimension(mm) |
11450 |
Engine |
Engine model |
L325 20 |
Overall width(mm) |
2550 |
manufacturer |
Cummins |
Overall height(mm) |
3850 |
Engine position |
Front |
Body inside height(mm) |
1940 |
Engine Type |
6 cylinders in-line, turbocharged with intercooler, |
Wheel base(mm) |
5800 |
Max power(kw) |
239 |
Front/rear overhang(mm) |
2340/3310 |
Max torque(N.m) |
1350 |
Approach/departure(º) |
13/9 |
displacement(L) |
8.9 |
First step height(mm) |
480 |
Bore/stroke mm |
114X144.5 |
Max G.V.W.kg |
18000 |
fuel |
|
Seats capacity (person) |
60+1/ 51+1 |
steering position |
|
Max. speed km/h |
120 |
Luggage cabin m3 |
8 |
|
|
Items |
Standard Equipments |
Options |
Chassis specification |
Manufacturer |
Made in Zhongtong |
|
Gear box |
S6-160 ,ZF Technology, six gears, mechanism |
|
Clutch |
Coil spring, Ø430 |
|
Front axle |
7.5 Ton front axle, |
|
Rear axle |
13 Ton third axle, |
|
Suspension |
Multi-Leaf spring Suspension |
|
Steering |
Integral assistant power steering |
|
Brake |
Dual circuit air braking, drum brake |
|
Fuel tank |
400L+400L |
|
Tyre |
315/80R22.5 doubel coin |
|
Battery /dynamo |
2×12V/195Ah / 28V /150A+140A |
|
Others |
Brake slack auto adjuster, Electric Retarder, ABS |
|

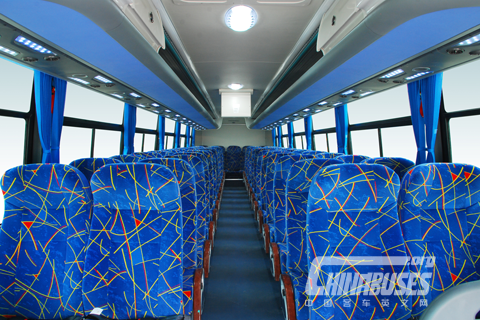

Seat |
Fixing type cloth seatsZTZY3072,3+2 layout 60+1, or 2+2 layout 51+1, Driver seat ZTZY1050, |
|
