Hengtong 2009 New Energy Bus Series

Hengtong Dual-rear Axle Gas Bus Running into Xichang Recently, in the national stadium of Xichang city, the open ceremony of Hengtong new bus line was held.

It is learned that comparing to ordinary bus, the Hengtong Newman dual-rear axle bus with a large-capacity, fast exchange, energy saving and environmental protection, maintenance and other low-cost advantages, and its use of CNG fuel, resulting in improving the reliability and



Introduction of Hengtong

Established in 1939, Chongqing Hengtong Bus Co., Ltd, or the original Chongqing Bus General Manufactory has always devoted

Hengtong Culture

Our mission：
 Produce more professional and environment-friendly buses with better quality and to provide outstanding service to society.

Hengtong Honor

· Jun/2007　　　Top 50 industrials enterprise in 3year sequence.

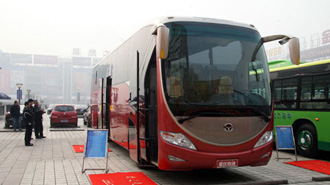

Diesel / natural gas hybrid 12-meter luxury highway bus (CKZ6127CHN3) is Hengtong and Weichai jointly adopted American-electronically controlled burn technology, developed the first domestic diesel / natural gas fuel-12 m Highway bus, large-scale gas to meet the need of long-distance large CNG bus.

parameter
Length×Width×Height（mm)：11990 ×2550 ×3790 Engine Model ：Xichai WT615S320
Max Output  （kw/rpm）：235（320hp）/2200 Loading Capacity+Driver ：49+1+1
Rated Capacity ：55 Max Speed （km/h）：120
 Max Torque（N.m/rpm): 1250/1400  wheelbase（mm）：6250

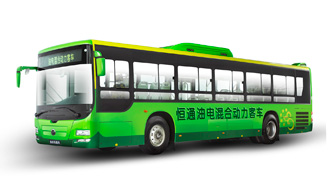

12-meter gas / electric hybrid city bus (CKZ6116HENV3) is the focus of Hengtong new product, which R & D has been included in the national Torch Program Ministry of Science and Technology, Hengtong invest more than 300 million to introduce the U.S. system's advanced parallel hybrid technology and Yuchai.

parameter
Length×Width×Height（mm)：11400 ×2500 ×3200 wheelbase（mm）：5600
Engine Model ： YC6J210N-30 Loading Capacity+Driver：34+1
Rated Capacity：90 Max Speed （km/h）：80
Accumulator：5.5Ah 340V Fuel Type ：Natural Gas

Diesel / electric hybrid bus (CKZ6116HEV3) Hengtong based on gas-electric hybrid bus, change the gas engine to diesel engine, at the same time research and development a diesel / electric hybrid bus CKZ6116HEV3, with mix technical characteristics of dynamic systems and structural characteristics.

parameter
Length×Width×Height（mm)：11400 ×2500 ×3200 Engine Model： YC6J200-30
Max Output（kw/rpm）：147（200hp）/2500 Fuel ：Diesel Oil
Max Torque（N.m/rpm): 420N.m Loading Capacity+Driver：34+1
Rated Capacity：90 Max Speed（km/h）：80

Hengtong Transverse 7-meter lower entrance back engine bus (CKZ6762) is pure natural gas one, the inside volume area of the product reached 65 percent utilization rate, which is equivalent to 9-meter bus, is an internal initiative, has access to intellectual property rights of independent innovation.

parameter
Length×Width×Height（mm)：7640 ×2200 ×2950 Engine Model ： CY4102-N3B
Max Output  （kw/rpm）：88/2500 Fuel ：Natural Gas
Max Overall Weight ：7500KG Displacement ：3856
Rated Capacity：38 Max Speed（km/h）：80


CKZ6127HN3 CKZ6116HN3 CKZ6127CHN3 CRZ6108H CKZ6650N3
CKZ6790CN CKZ6851H3 CKZ6918N CKZ6116N3 CKZ6123N
